Does Powder Coating Hide Scratches? What to Expect

A fabricated part can be structurally sound, dimensionally correct, and still fail inspection because of visible grind marks, handling scratches, or surface damage. So, does powder coating hide scratches? Sometimes - but it is not a substitute for proper surface preparation. The depth of the scratch, the coating selected, the part geometry, and the finish level all determine what will show after cure.

For commercial and industrial parts, the right approach is to treat powder coating as the final protective layer, not as a repair material. A consistent, durable finish starts with a surface that is ready to receive it.

Does Powder Coating Hide Scratches?

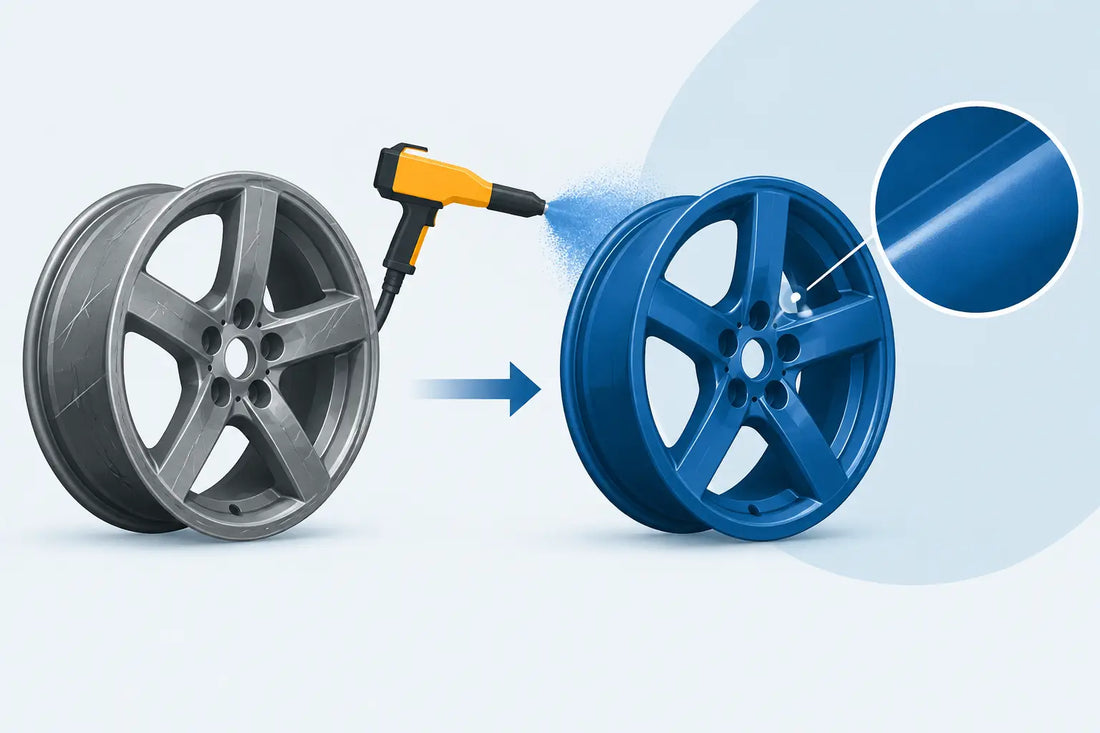

Powder coating can reduce the appearance of minor, shallow scratches. Light scuffs, fine sanding marks, and very small imperfections may become less visible once the powder flows out during the curing process. This is especially true when the coating has adequate film build and the selected color and gloss do not emphasize surface texture.

Deep scratches, gouges, grinder marks, weld spatter, and sharp-edged defects will usually remain visible. In many cases, the cured coating makes them easier to see because the finish follows the contour of the underlying metal. Powder does not level like body filler, and it cannot make a deep groove disappear simply by applying a thicker coat.

A useful rule for production parts is straightforward: if a scratch can be felt clearly with a fingernail, assume it needs attention before coating. It may look less severe after finishing, but it is unlikely to vanish.

Why Scratches Still Show Through Coating

Powder coating is applied as dry particles that are electrostatically charged and attracted to a grounded metal part. In the oven, those particles melt, flow, and chemically cure into a continuous film. That flow helps smooth out very fine texture, but it has limits.

Most standard powder coatings are applied in a controlled film thickness, commonly measured in mils. Building excessive thickness in an attempt to cover damage can create other problems, including runs, uneven gloss, poor edge appearance, trapped gas defects, or reduced fit at mating surfaces. On brackets, cabinets, machine guards, housings, and precision fabricated components, excess buildup can affect assembly just as much as a visible scratch.

The shape of the defect matters as well. A broad, shallow sanding pattern may be softened by the coating. A narrow gouge with defined edges tends to telegraph through the finish. The same is true for heavy flap-disc marks, poor weld cleanup, and areas where old coating has been feathered unevenly.

The Finish You Choose Changes What the Eye Sees

Color and gloss can either conceal minor surface variation or put it on display. High-gloss black, dark colors, and smooth finishes reflect light sharply. They tend to reveal every wave, scratch, and repair line in the metal. If appearance is critical, these finishes demand a higher level of surface preparation.

Lower-gloss finishes, textured powders, and certain hammertone or wrinkle effects can better disguise light imperfections. They are often practical choices for industrial equipment, frames, enclosures, and components that need a durable working finish rather than an automotive-style appearance. That does not mean texture will hide major damage. It simply gives the eye less direct reflection to follow across the surface.

Color also affects visibility. Bright whites can expose contamination and unevenness. Metallic powders can show inconsistencies in application or surface profile. Dark gloss colors highlight scratches before and after coating. When specifying a finish, it helps to decide whether the priority is a particular appearance, maximum concealment of minor defects, or a balance of both.

Thickness Is Not a Repair Strategy

It can be tempting to request a heavier application over a scratched area. In practice, this is rarely the best answer. Powder needs to be applied consistently across the part, and thicker is not automatically better. Excess film build can soften detail, interfere with threads or holes, create uneven coverage at edges, and complicate quality control.

If the damage is significant, the efficient solution is usually mechanical correction before finishing. Sanding, grinding, blending, blasting, or weld cleanup can restore a more uniform surface. The right method depends on the base material, the depth of the defect, and the visual standard for the finished part.

Surface Preparation Determines the Final Result

The coating operation starts well before powder enters the spray booth. Oil, rust, mill scale, old paint, oxidation, and embedded contamination must be removed or addressed. A clean, properly profiled surface gives the powder a sound foundation for adhesion and corrosion resistance.

For steel parts with rust, old finish, or heavy surface damage, abrasive blasting is often the most effective starting point. Blasting removes contaminants and creates a surface profile that supports coating adhesion. It may also reveal defects that were hidden under old paint or scale, allowing them to be repaired before the final finish is applied.

For fabricated parts, surface preparation often includes more than blasting. Weld seams may need to be dressed. Sharp edges may need to be broken. Laser-cut or plasma-cut edges may need cleanup. Handling marks from fabrication, forming, and transport may need to be blended. These steps are not cosmetic extras when a customer expects a uniform finish. They directly affect how the completed part looks and performs.

A one-stop fabrication and finishing partner can be particularly valuable when issues are found before coating. Instead of moving the part between separate vendors for cutting, forming, welding, repair, blasting, and finishing, the work can be coordinated in one process. That reduces handling, avoids unnecessary delays, and keeps the final finish aligned with the part's intended use.

When a Scratch Can Be Coated As-Is

Not every mark requires rework. Light handling scratches on a utility frame or equipment base may be acceptable if the specified finish is textured or low gloss and the part is not customer-facing. A minor scuff that does not expose corrosion, create a sharp edge, or affect fit may be covered successfully during normal coating.

The decision should be based on the part's function and acceptance standard. Consider whether the part will be installed at eye level, handled frequently, exposed to weather, or used in an environment where corrosion protection is critical. A shallow scratch on a shop cart is different from a mark on a visible machine enclosure, retail fixture, agricultural component, or OEM assembly.

For repeat production work, it is worth setting a clear standard before the first run. Define which marks are acceptable, what areas are cosmetic, the required color and gloss, and whether textured powder is allowed. This prevents inspection disagreements after the parts are already finished.

Scratches That Need Repair Before Powder Coating

Deep gouges and exposed base metal should be addressed before coating, particularly if the part will see moisture, chemicals, abrasion, or outdoor service. Scratches around welds, corners, bolt holes, and seams deserve added attention because these areas can be vulnerable to corrosion if preparation is incomplete.

The same applies to scratches on galvanized material, aluminum, and previously coated parts. Each substrate needs the correct cleaning and preparation process. Simply coating over an unknown surface or a damaged existing finish can lead to adhesion issues later, even if the part looks acceptable when it leaves the shop.

If cosmetic appearance is a priority, communicate that before work begins. Provide the expected use of the part, the target color, and any sample or quality standard that defines acceptable surface condition. A coating shop can then recommend the right preparation level and finish type instead of guessing after the parts arrive.

Get the Part Ready for the Finish It Needs

Powder coating provides a tough, clean, professional finish, but it cannot erase every fabrication mark underneath it. The best results come from matching surface preparation to the defect, the material, and the visual demands of the job.

For large, difficult, or production-critical parts, Hoosier Coatings can coordinate blasting, fabrication support, and custom powder coating in one operation. Bring the surface condition and finish requirements into the conversation early, and the finished part is far more likely to look right, protect the metal, and stay on schedule.
